Managing Gatekeepers
The Console gives you the ability to monitor Corsha Gatekeepers and visualize their traffic. With the Gatekeeper Overview and Details pages, you will be able to see all traffic passing through Gatekeepers, or drill down to a single Gatekeeper's workload.
To manage Gatekeepers, click on the "Gatekeepers" icon on the left taskbar of the Console.
Review Gatekeepers
The Gatekeeper Overview page is opened when clicking the Gatekeeper icon in the navbar. The Gatekeeper Table shows all deployed Gatekeepers, and allows you to drill down into individual Gatekeepers.

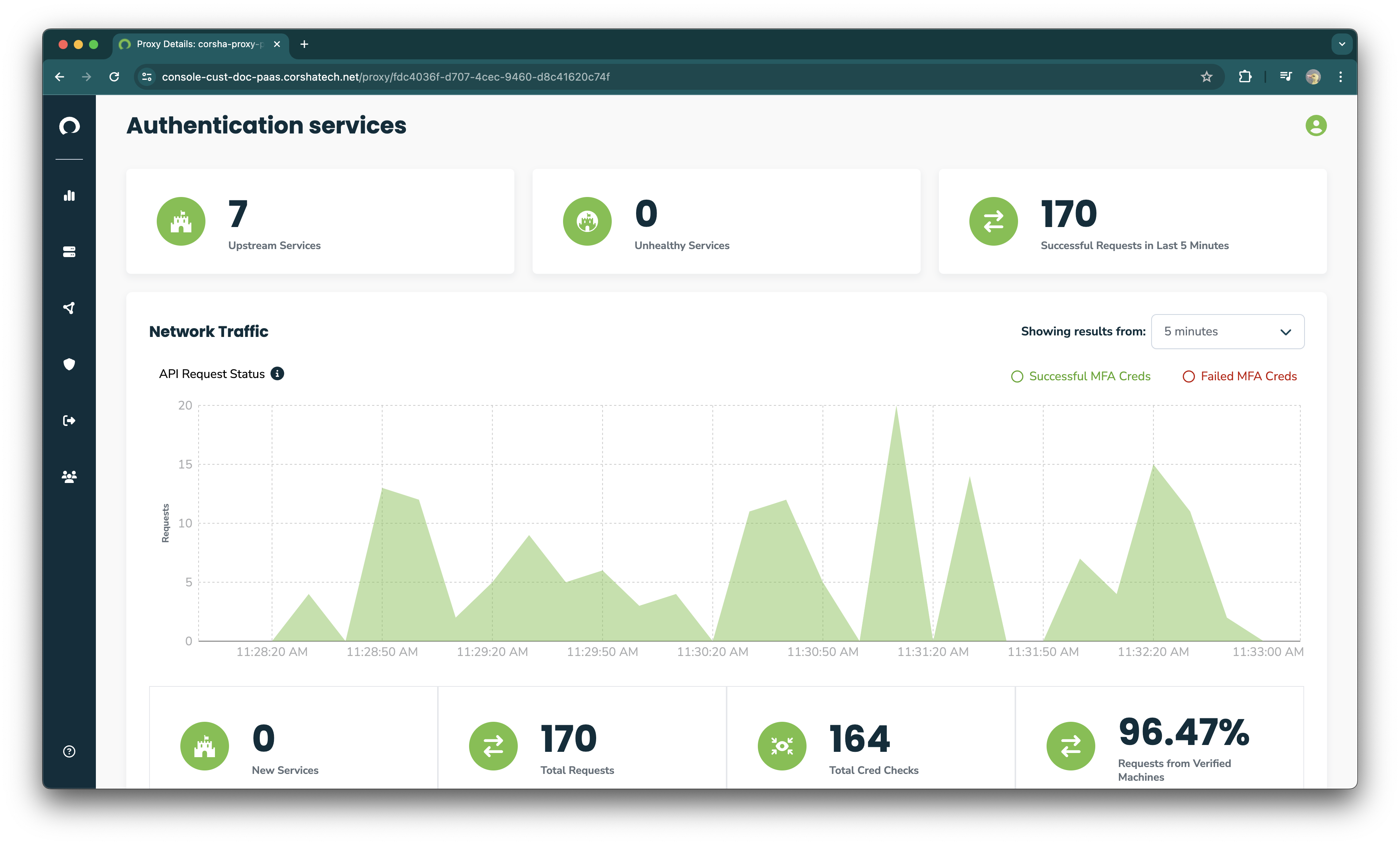

If you click a Gatekeeper in this table, you will be redirected to that Gatekeeper's page. There, you can see a graph of requests the Gatekeeper is handling in real time.
Review Services
The Services tab can be found at the top of the Gatekeeper Overview page. A Corsha Gatekeeper can be deployed to handle traffic to multiple upstream urls and ports. When you open the Services tab, you will see all the upstream endpoints that are protected by Corsha.
Review Traffic

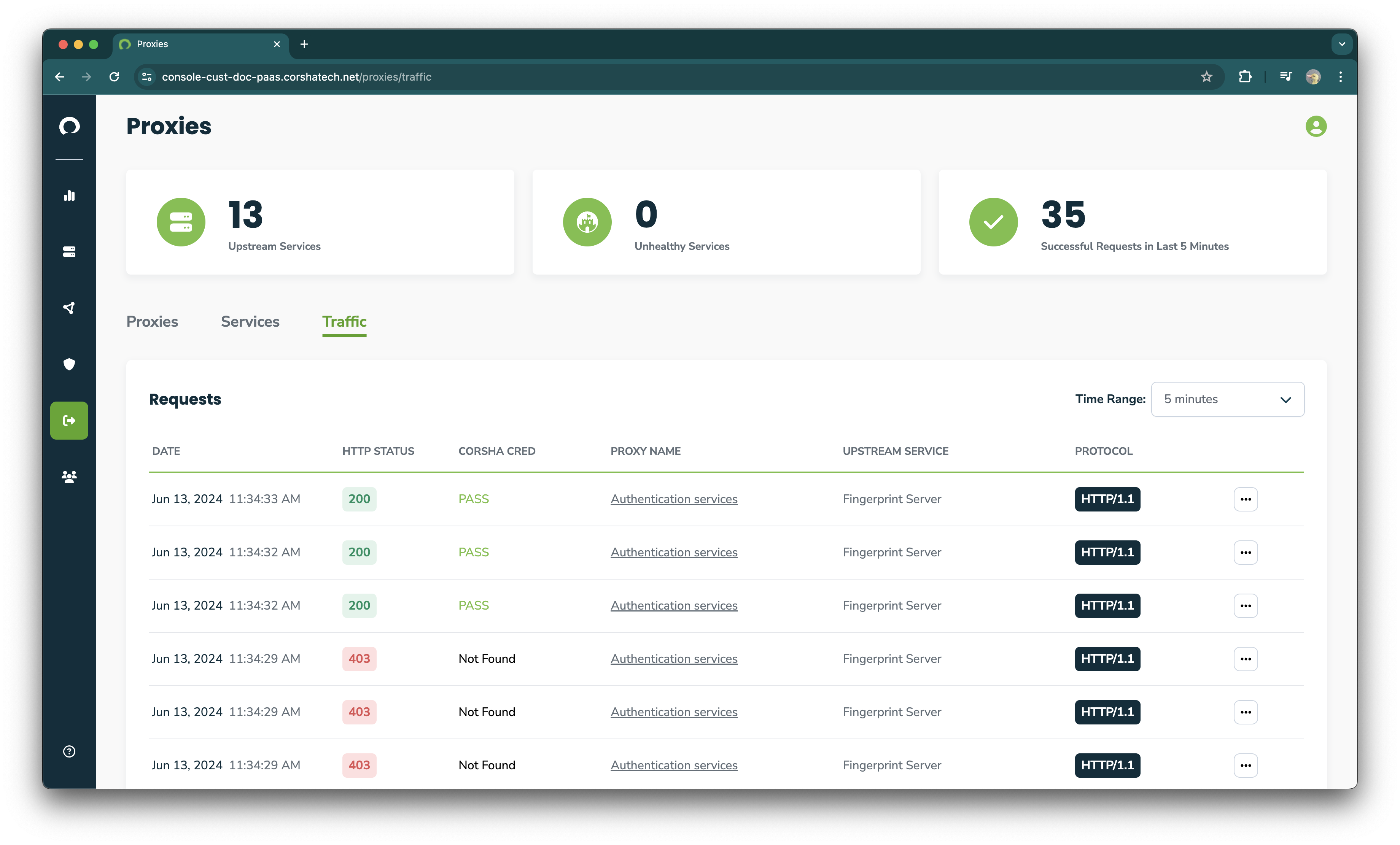

The Traffic tab can be found at the top of the Gatekeeper Overview page. When you click the Traffic tab, you will see the individual requests being sent through your Gatekeepers.

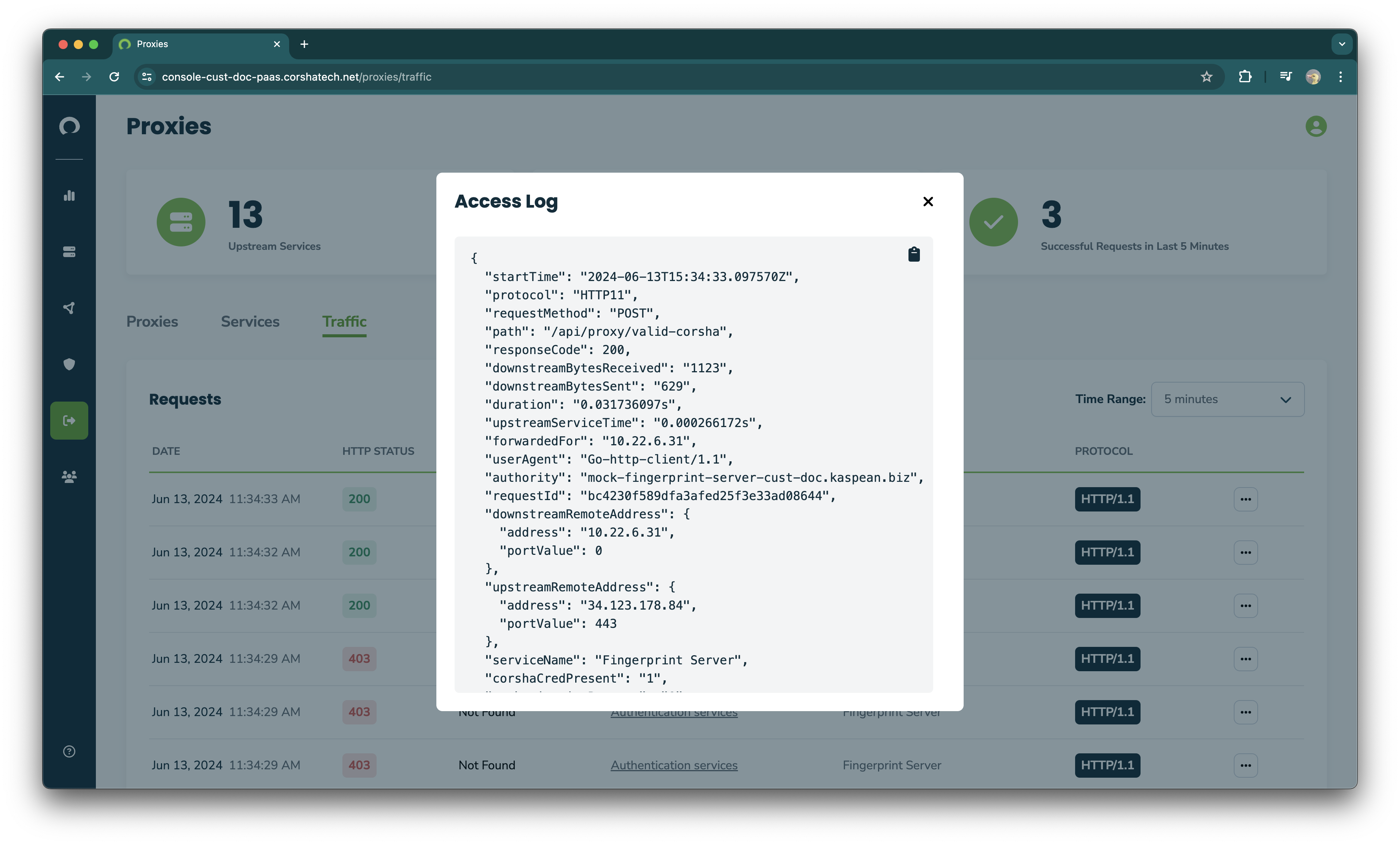

Each request can be inspected by clicking the ellipsis at the end of the row, then clicking "View Full Access Log"
When you inspect the traffic, you will be greeted with all the data Corsha has gathered from the request. In this request, we see the request was allowed through since it has a Corsha Cred and resulted in a 200 http response.
